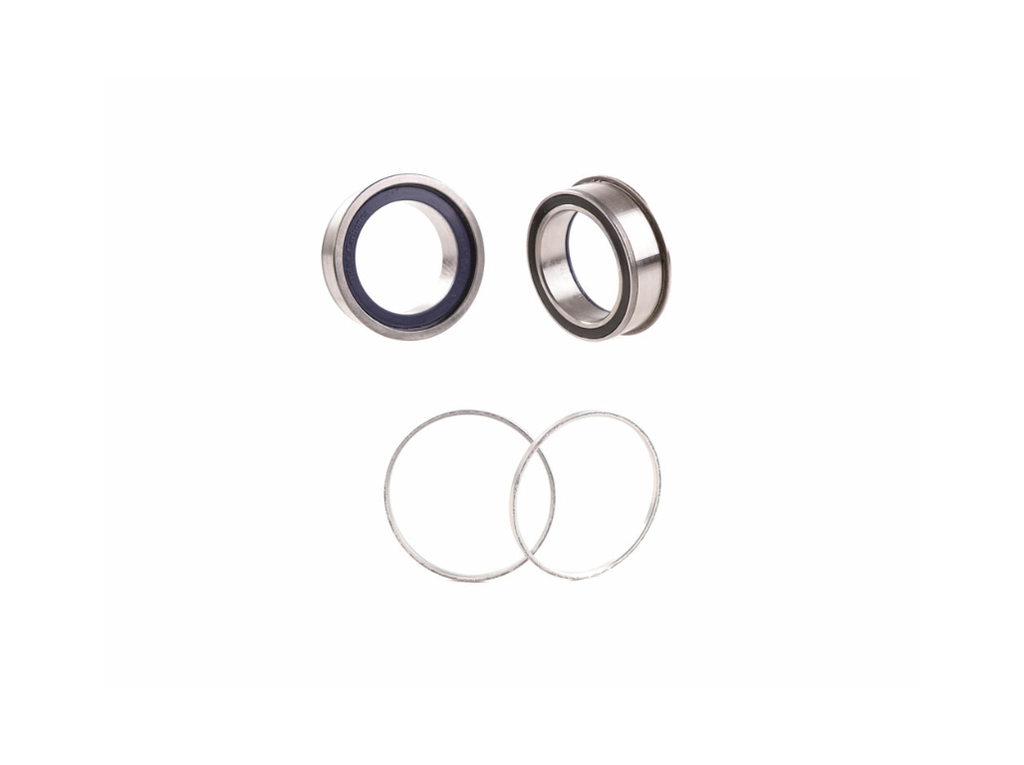

THM CARBONES bottom bracket MTB for Shimano Pressfit BB92 | BB89,5 frame
These cups are suitable for mounting the THM clavicle on frames with bottom bracket housings according to the Shimano Pressfit standard.
The standard is designed for the use of axle n with a diameter of 30 mm. This axle diameter in combination with the large bearings extends the life of the bearings, less load on the axle and noticeably increases the stiffness of the crank.
Supplied with two aluminum equalizers.
Technical specifications:
intended use : MTB
Material bearing shell: steel
Material bearing: steel
Bearing Type: Shimano Pressfit BB92 | BB89.5 MTB
Inner bearing housing Width: 92 mm or 89.5 mm
Inner bearing housing Ø: 41 mm
Crank shaft diameter: 30 mm
Crank wavelength: -
Compatibility crank: THM Clavicula M3 MTB, cranks with BB30 shaft
Stock: THM Carbones
Tool holder: BB86 / 92 PressFit tool
Silver
Weight: 80g
Specifications for Carbones Bottom Bracket MTB for Shimano Pressfit BB92
