X-CARBORING AXS

Product details

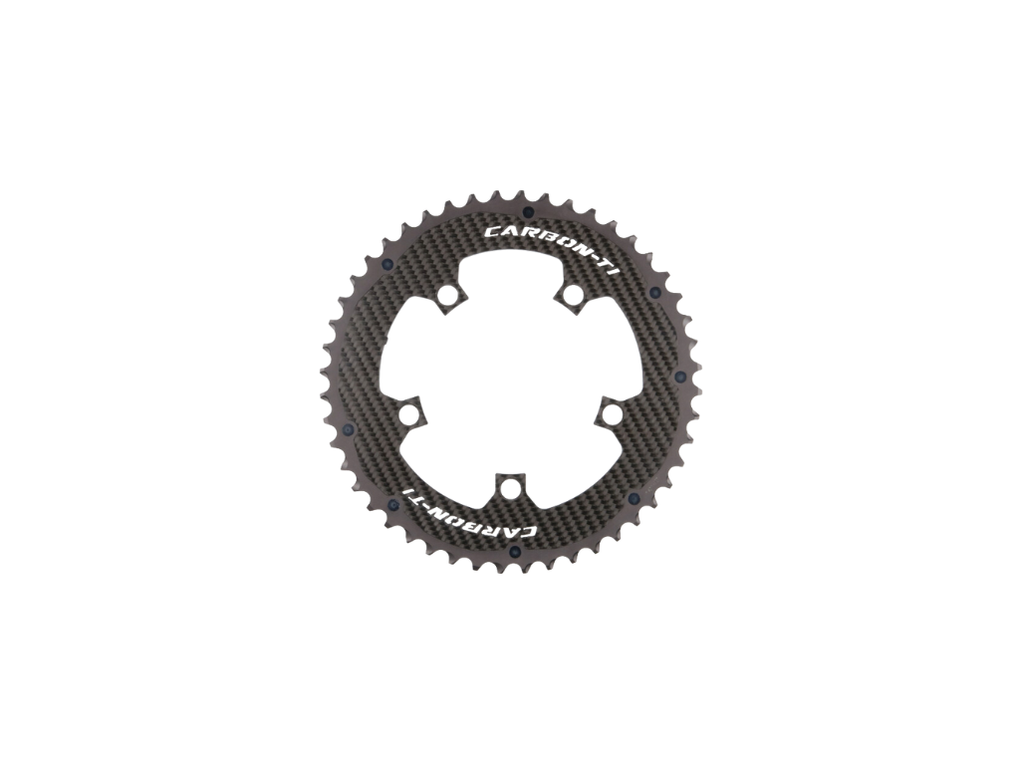

CARBON-TI chainring X-CarboRing X-AXS Carbon LK 110 | 48 teeth outside

The new X-CarboRing X-AXS chainrings for the electronic SRAM AXS 12-speed groups are made from an optimal mix of materials. The main component is carbon in perfect Italian milling art, with a toothed ring made of aluminum (AL7075-T6) and titanium elements (grade 5 titanium) for the shifting aids. This makes the CARBON TI CarboRing chainring the best example of sensible use of materials in terms of durability and weight.

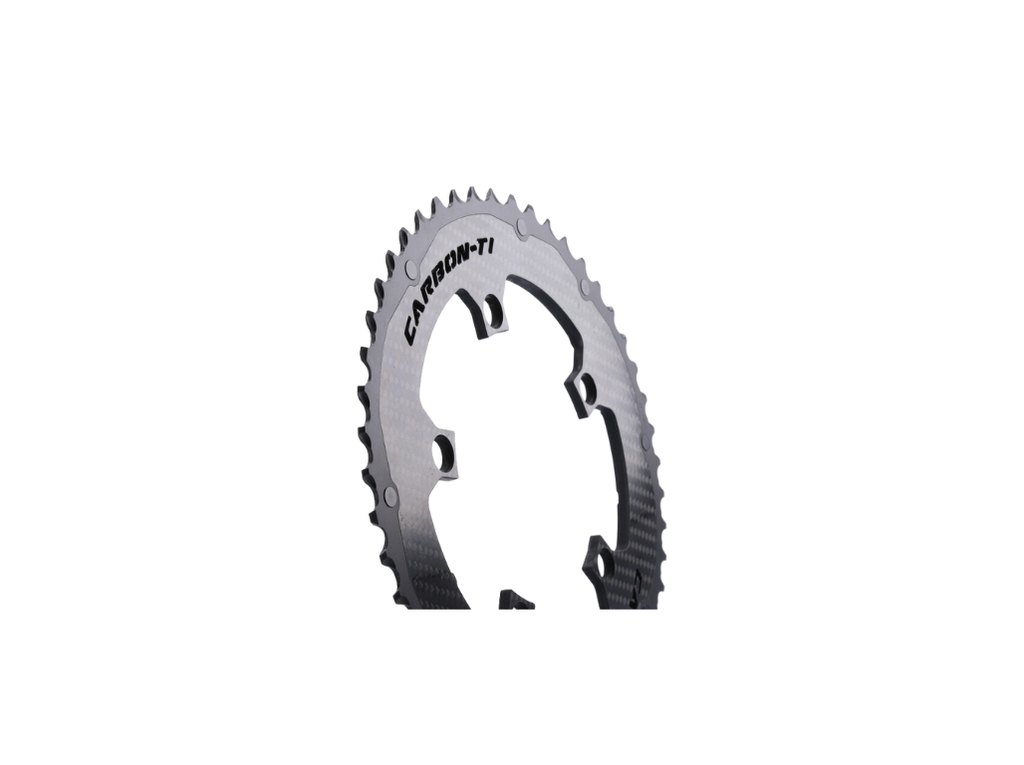

The back of the carbon chainring is artfully milled to save even the last gram and to enable perfect shifting behavior. The durability is guaranteed by the use of aluminum as tooth material.

The chainring is suitable for a double compact cranks with 5-hole mount and 110 mm bolt circle diameter .

Note: For optimal shifting performance, CARBON-TI provides the use of a suitable inner CARBON-TI X-CarboRing X-AXS chainring with 35 teeth (gradation: 48/35). The use of other combinations is not recommended.

Technical specifications:

intended use : road, triathlon

Material: 3K carbon, aluminum 7075-T6, titanium GRD5

Technology: optimized for SRAM flattop

bolt circle diameter : 110 mm (compact)

Attachment: 5-arm spider

Number of teeth: 48 teeth

Compatibility cranks : Standard compact cranks with 5-hole 110 mm

Compatibility chain: 12-speed SRAM eTap AXS Flattop

Assembly: outside

chain line : depending on the crank and frame

Offset: standard

Adjustment options: none

Range (ovalization): -

Timing (force application): -

Color: Black
