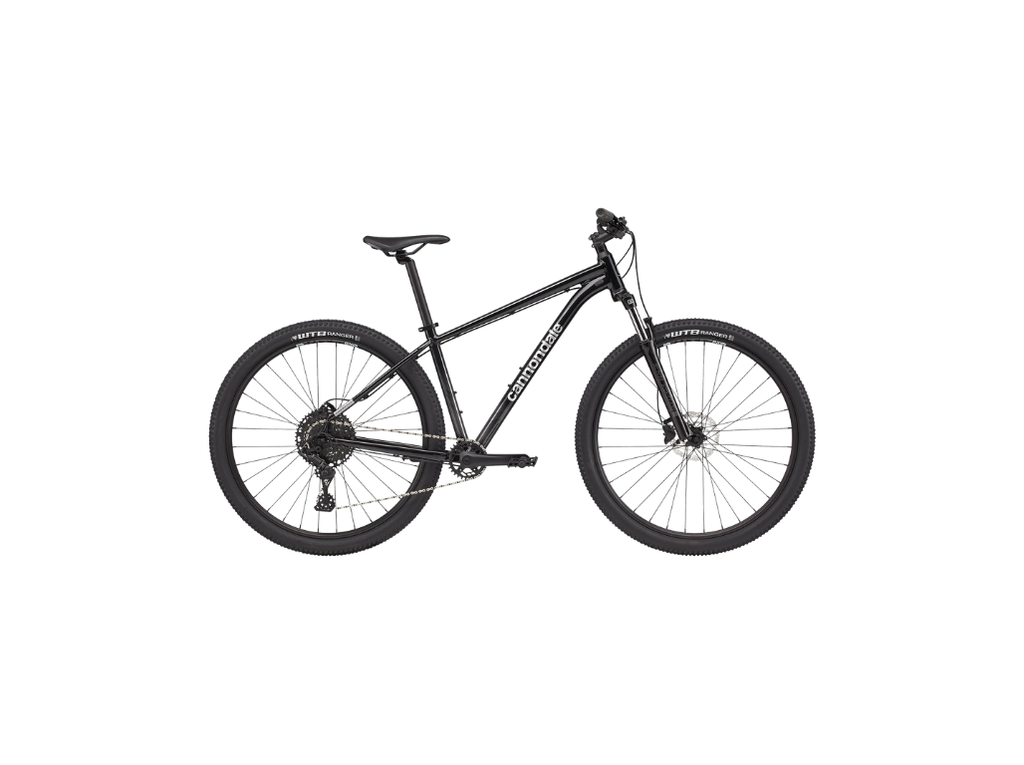

Trail 5 29" Mountain Bikes

Level Up.

A mountain bike built to raise your game and ignite a passion for the trail. Designed for the mountains and ready for anything.

Where it thrives

Low-impact trails, gravel roads, leisurely ride

What it's built for

Handling, durability

Highlights

Light and durable SmartForm C3 Alloy frame

SR Suntour XCM suspension fork, 100mm travel

microSHIFT Advent X 10-speed shifting / Shimano hydraulic disc brakes

Specs

FRAMESET

Frame : SmartForm C3 Alloy, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, BSA-73

Fork : SR Suntour XCM, 100mm, coil, 42mm offset (27.5") 46mm offset (29")

Headset :Semi-Integrated, 1-1/8"

DRIVETRAIN

Rear Derailleur : microSHIFT Advent X

Shifters : microSHIFT Advent X, 10-Speed

Chain : KMC X10, 10-speed

Crank : Prowheel, Charm 30T

Rear Cogs : microSHIFT, 11-48T, 10-speed

Bottom Bracket : Sealed bearing cartridge, square taper

BRAKES

Brakes : Tektro M275 hydraulic disc, 160/160mm rotors

Brake Levers : Tektro hydraulic disc

WHEELS

Rims : WTB SX19, 32h

Front Hub : Shimano HBTX 505

Rear Hub : Shimano FHTX505

Spokes : Stainless Steel, 14g

Tires : WTB Ranger Comp, 29x2.25" (27.5x2.25" - XS, SM), DNA Compound

Tire Size : 2.25

Wheel Size : 29

Front Tire : WTB Ranger Comp, 29x2.25" (27.5x2.25" - XS, SM), DNA Compound

Rear Tire : WTB Ranger Comp, 29x2.25" (27.5x2.25" - XS, SM), DNA Compound

COMPONENTS

Handlebar : Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm

Stem : 6061 Alloy, 31.8, 7°

Grips : Cannondale Dual-Density

Saddle : Cannondale Stage 3

Seatpost : Cannondale 3, 6061 Alloy, 31.6 x 350mm (XS - SM), 400mm (MD-XL)
