Details

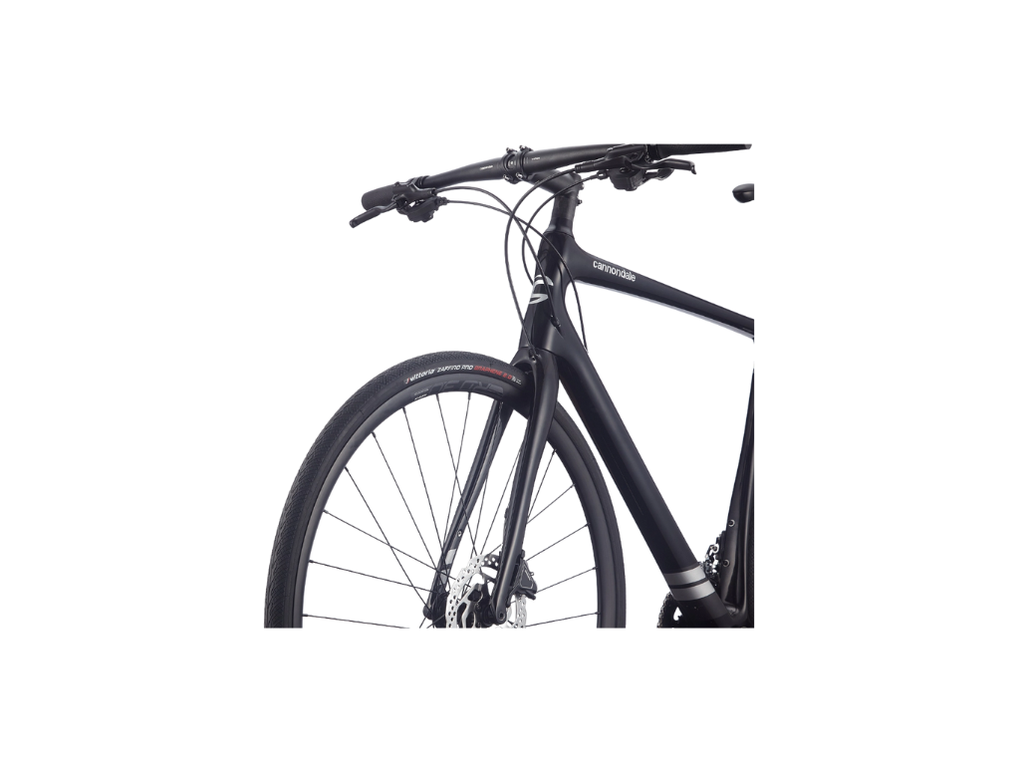

Enjoy Synapse speed joined with upright comfort thanks to flat bars for the ultimate high-performance fitness machine. Synapse Carbon is a road bike that’s light, stiff, fast, and surprisingly comfortable. It's performance-focused but with a slightly more upright geometry, perfect for long days in the saddle and confident handling on all road surfaces. Micro-Suspension in the rear triangle and fork keeps you comfortable and in control, while the frame's BallisTec Carbon construction and full carbon fork deliver exceptionally low weight for this category and result in a high-performance feel. With clearance for tires up to 32mm wide and subtle, hidden fender mounts for exploring the wilder side of endurance riding, this bike is ready for adventure.
- BallisTec Carbon frame, internal cable routing, flat mount disc
- Full carbon thru-axle fork
- Shimano Ultegra 11-speed drivetrain
- Shimano UR300 hydraulic disc brakes
- Vittoria Zaffiro 28c tires
Specs
Frame : BallisTec Carbon, Di2 ready, SAVE, BB30a, flat mount, internal cable routing, removable fender bridge
Fork
BallisTec Carbon, SAVE, integrated crown race, internal routing, size-specific design:
Sizes SM – MD: 1-1/8" – 1-1/4" tapered steerer, 55mm rake
Sizes LG – XL: 1-1/8" – 1-3/8" tapered steerer, 45mm rake
Headset
Synapse, 1-1/4" lower bearing, 25mm top cap
Axles
Front: 12 x 100mm thru-axle
Rear: 12 x 142mm thru-axle
Rims/Wheels
RD 2.0, 28h
Hubs
Front: Formula RX-512
Rear: Formula RX-142
Spokes
Stainless steel, 14g
Tires
Vittoria Zaffiro Pro Bright Black, 700 x 30c, reflective strip
Crankset
FSA Omega alloy
Chainrings
50/34T
Bottom Bracket
Cannondale BB30
Chain
KMC X11, 11-speed
Front Derailleur
Shimano 105, braze-on
Rear Derailleur
Shimano Ultegra GS
Cassette/Rear Cogs
Shimano 105, 11-34, 11-speed
Shifters
Shimano RS700 FB, 2x11
Handlebars
Cannondale 3 Flat, 6061 Alloy, 10° back, 3° rise
Tape/Grips
Cannondale Ergo Fitness Dual Density, Lock-on
Stem
Cannondale 3, 6061 alloy, 31.8, 7°
Brake Levers
Shimano MT201 hydro disc
Brakes
Shimano UR300 hydro disc, 160/160mm RT10 rotors
Saddle
Fabric Scoop Radius Elite, cro-mo rails
Seat Post
6061 alloy, 25.4 x 350mm (44-56), 400mm (58-61)
Accessories & Extras
Cannondale Wheel Sensor
Specifications for Synapse Carbon Disc Ultegra Flatbar
| Size | m or S |
| Color | BLK |
