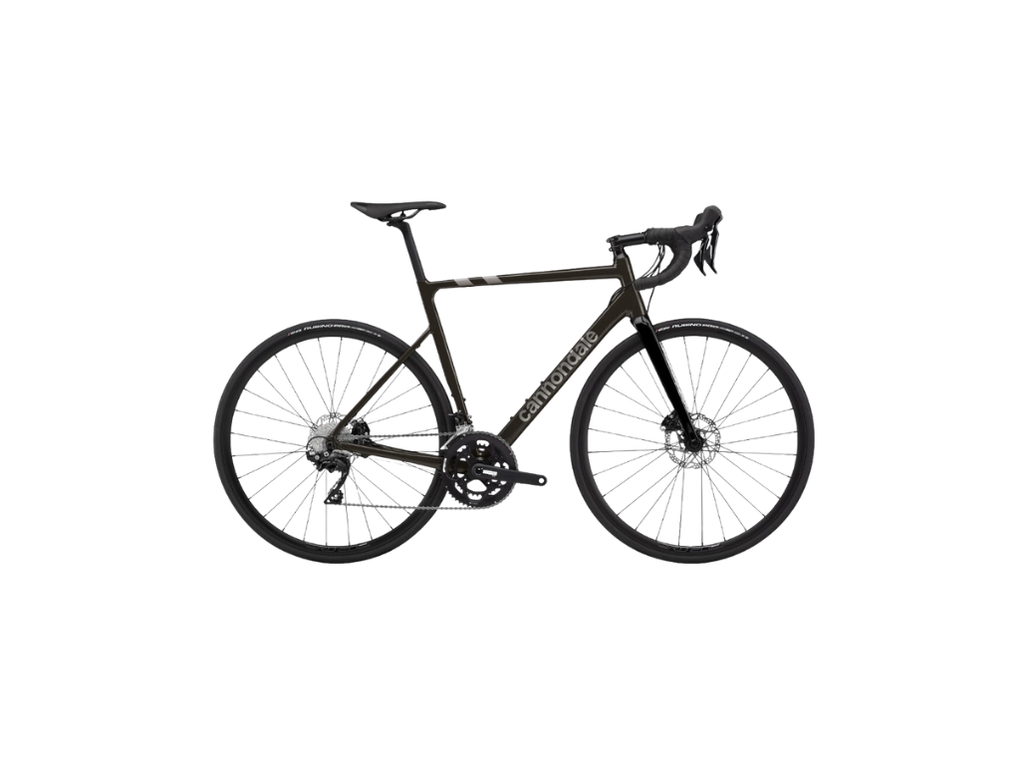

The CAAD13 is the ultimate aluminum racing machine. Thanks to its exceptional rigidity and great handling, it even leaves most carbon wheels behind - at the price of aluminum. How fitting! The 13 is the atomic number for aluminum in the periodic table of the elements.
The aluminum experts at Cannondale continue to forge their silver legacy. The premium aluminum "SmartForm C1" of the CAAD13 is the lightest and most sophisticated aluminum construction on the market.
The frame is characterized by adapted Airfoil tubes, which have a comparable weight and the same or even higher stiffness up to 30 percent lower air resistance than round tubes.
Specs
DRIVETRAIN
Bottom Bracket : Cannondale BB30
Chain : Shimano HG601, 11-speed

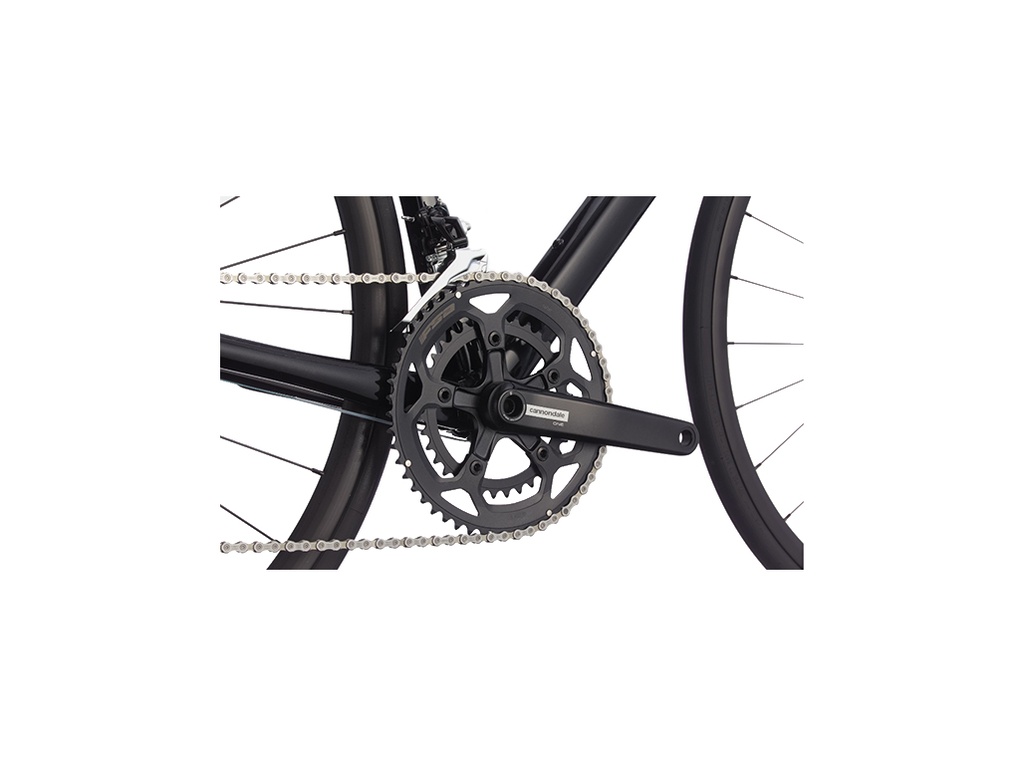

Crank : Cannondale 1, BB30a, FSA rings, 52/36
Front Derailleur : Shimano 105, braze-on
Rear Cogs : Shimano 105, 11-30, 11-speed
Rear Derailleur : Shimano 105 GS
Shifters : Shimano Ultegra, 11-speed
FRAMESET
Fork : BallisTec Carbon, SAVE, 1-1/8" to 1-1/4" steerer, integrated crown race, 12x100mm Speed Release thru-axle, flat mount disc, internal routing, 55mm offset (47-54cm) 45mm offset (56-62cm)
Frame : SmartForm C1 Premium Alloy, 12x142 Speed Release thru-axle, flat-mount disc, integrated cable routing w/ Switchplate, SAVE, BB30a, Di2 ready
Headset : CAAD13, integrated, 1-1/8" - 1-1/4
WHEELS
Front Hub : Formula CL-712, 12x100 centerlock
Rear Hub : Formula RXC-400, 12x142 centerlock
Rims : Cannondale RD 2.0 Disc, double wall w/ eyelet, 28h
Spokes : Stainless Steel, 14g
Tire Size : 28
Tires : Vittoria Zaffiro Pro Slick, 700 x 25c
Wheel Size : 700c
BRAKES
Brake Levers : Shimano 105 hydraulic disc
Brakes : Shimano 105 hydraulic disc, 160/160mm RT64 rotors
COMPONENTS
Grips : Cannondale Bar Tape, 3.5mm
Handlebar : Cannondale 3, 6061 alloy, Compact
Saddle : Prologo Nago RS STN
Seatpost : HollowGram 27 KNØT, Alloy, 2 bolt clamp, 330mm
Stem : Cannondale 3, 6061 Alloy, 31.8, 7°
Specifications for Caad 13 Disc 105 Road Bike
| Size | 56 or 44 or 48 or 51 or 54 |
| Color | SBK or CGR or BBQ or CRD |
