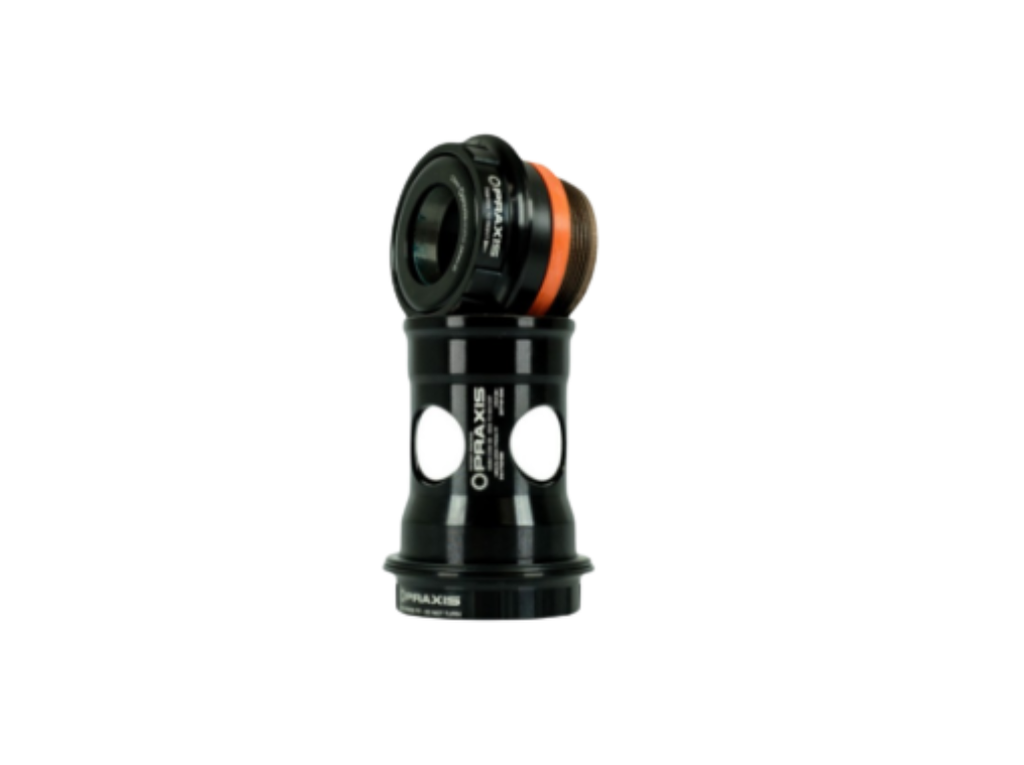

PRAXIS WORKS bottom bracket BB30 | PF30 for SRAM GXP MTB crankset
The elegant inner bearings of PRAXIS WORKS are the result of elaborate developments in Santa Cruz, California. The inner bearings are convincing with a few detailed solutions, and the selection of materials and production strategies foster absolute added value for your bike. The robust design and the elaborately protected ball bearings ensure a long service life with the highest demands.

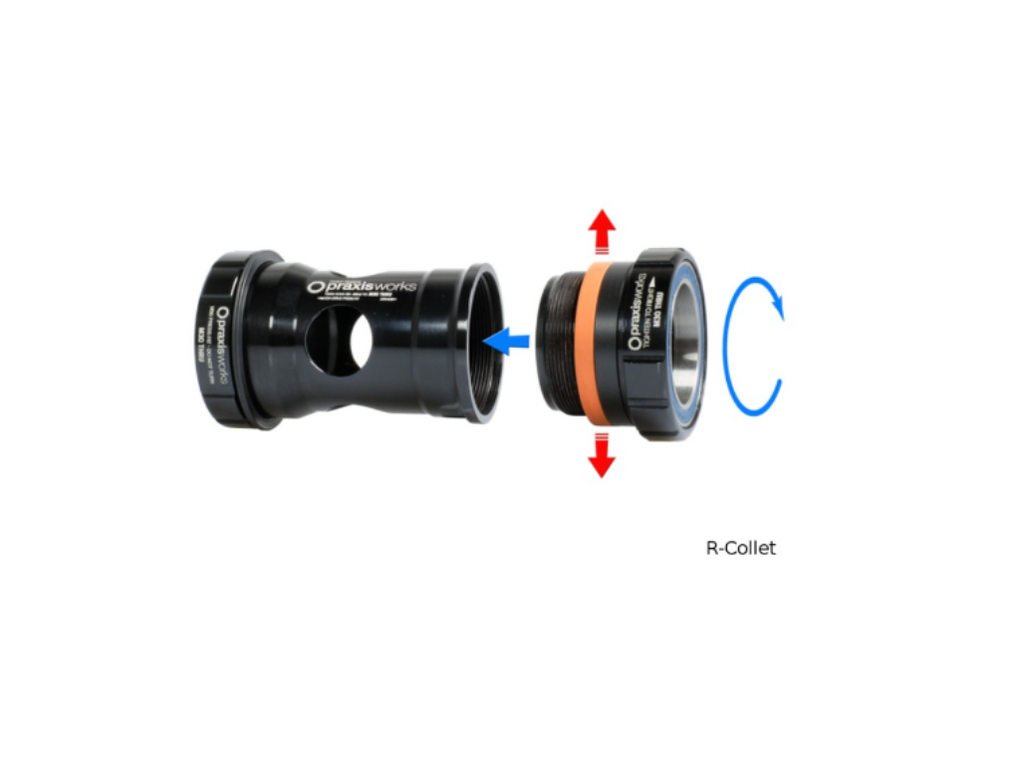

Rubber-Collet
The technology patented by Praxis Works compensates for small tolerances in the frame, thus avoiding annoying pops. When the two shells are twisted together, an elastomer is compressed in a defined way. This elastomer builds up slight pressure on the bearings to seat in the frame free of play.
With this bottom bracket you can drive your SRAM GXP MTB crank in a frame which is designed for BB30 or PF30 bottom bracket standard. In order to compensate for the difference between the outside diameter of the BB30 and the PF30, PRAXIS WORKS Dir supplies a robust plastic sleeve made of Delrin as an adapter.
Technical specifications:
Intended use : MTB
Material bearing shell: aluminum 7075-T6
Material bearing: steel
Bearing Type: BB30 | PressFit 30
Inner bearing housing width: 73 mm
Inner bearing housing Ø: 42 mm (BB30) | 46 mm (PF30)
Crank shaft diameter: 24 mm drive side / 22 mm non-drive side
Compatibility crank: SRAM GXP MTB crank
Bearings: Enduro Bearings Industrial Ball Bearings
Tool holder: bottom bracket wrench Shimano Hollowtech ||
Color: Black
Weight: 164g
