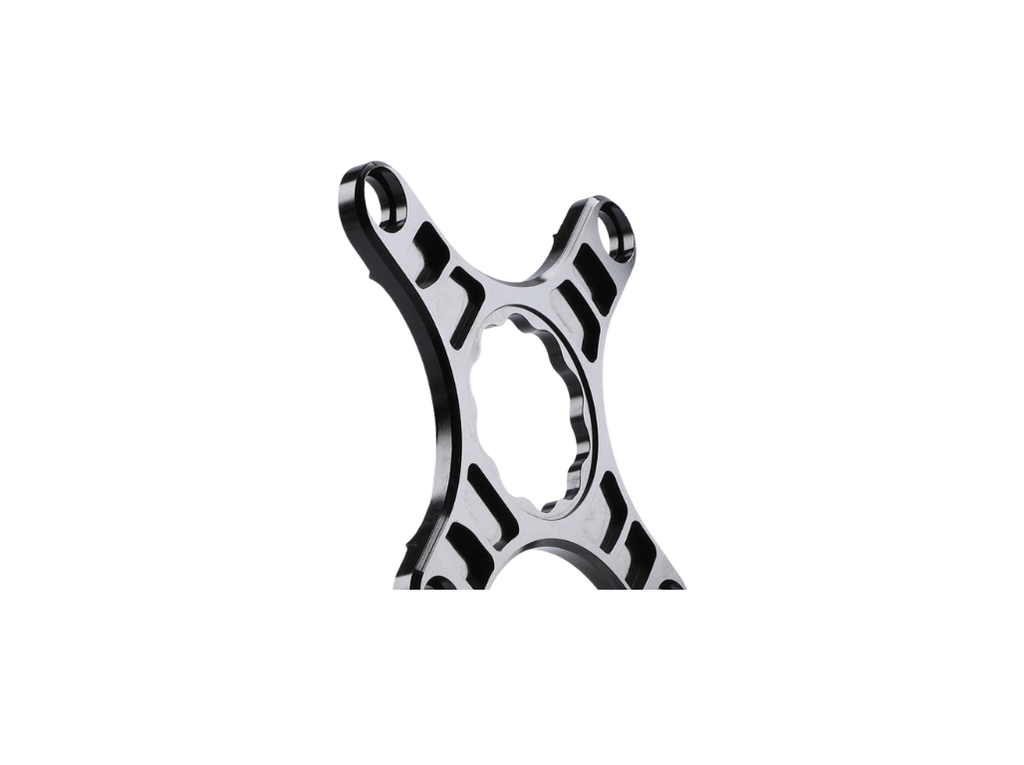

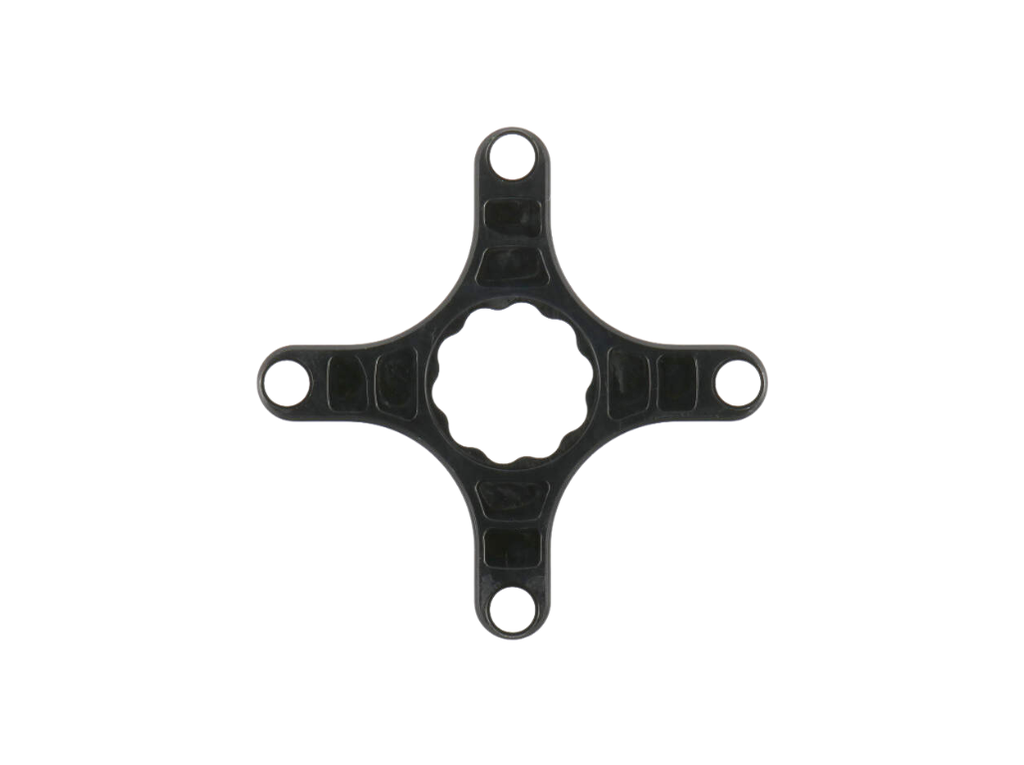

THM CARBONES Spider 1x Boost Kit LK 104 | for Clavicula
M3 cranks This spider makes it possible to mount 1-speed chainrings with a 104 mm bolt circle on Clavicula M3 crankset.
The offset is optimized for frames with Boost geometry and moves approx. 3 mm outwards compared to the standard chain line with 1x drives. This avoids contact between the chainring and the chainstay and improves the performance of your bike and boost drive.
Technical specifications:
Material: aluminum Bolt
circle: 104 mm (standard)
Spider type: 4-arm
offset: 3 mm (boost)
Compatibility crank: THM Clavicula M3 MTB cranks
Compatibility chainring: 1x standard chainrings with 104 mm bolt circle
Chain line: frame with 52 mm boost Chain line
Finish: matt anodized
Color: black
Weight according to the manufacturer:
not specified Weight weighed: from 34.8 g

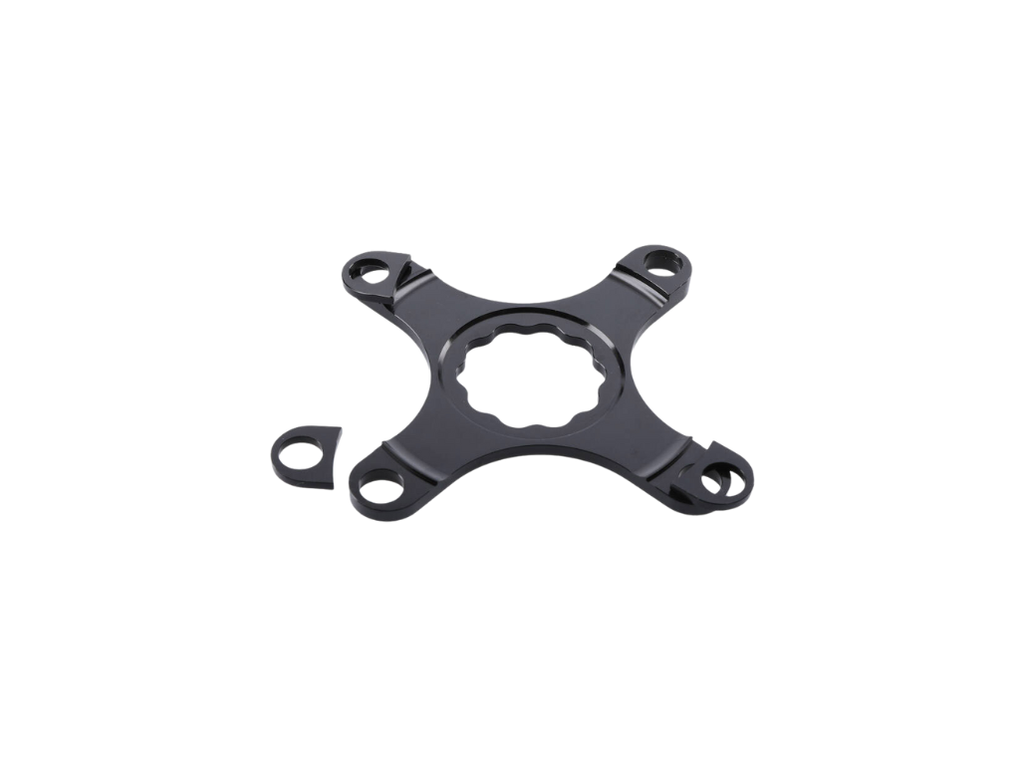

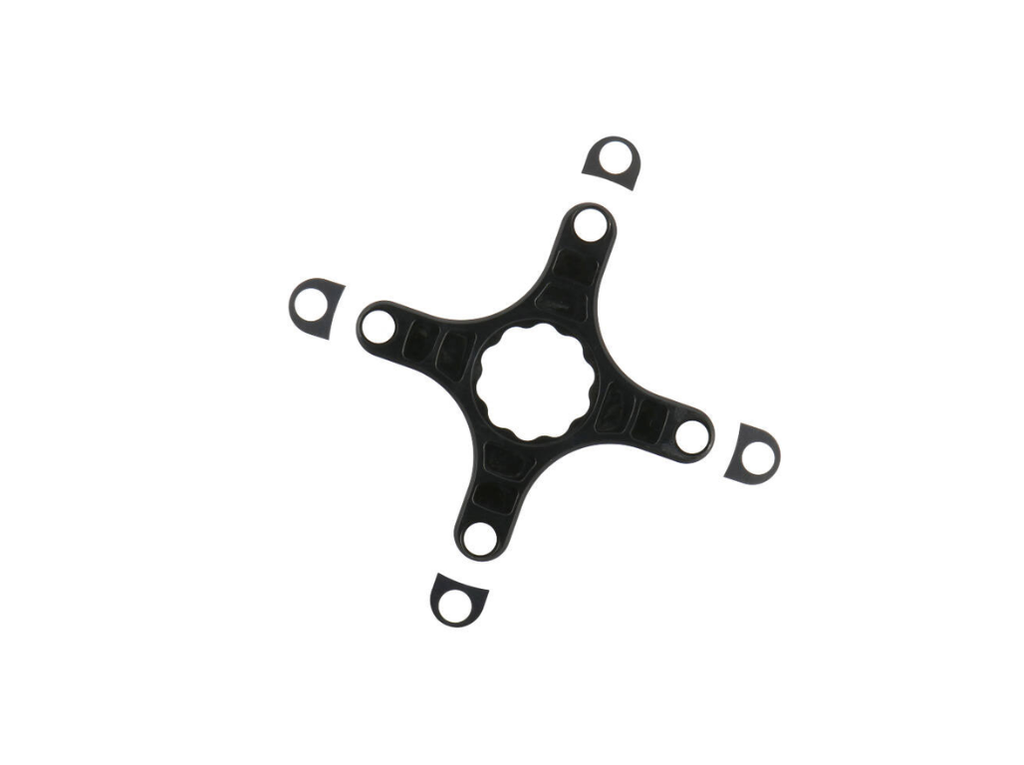

Scope of delivery: 1x THM CARBONES Spider 1x Boost Kit LK 104 | for Clavicula M3 crank incl. spacer
Note: Only suitable for one chainring, it is not possible to mount an additional bashguard!
Specifications for Carbones Spider 1-speed Boost Kit BCD 104 | for Clavicula M3 Crank
| Size | 104X3 |
