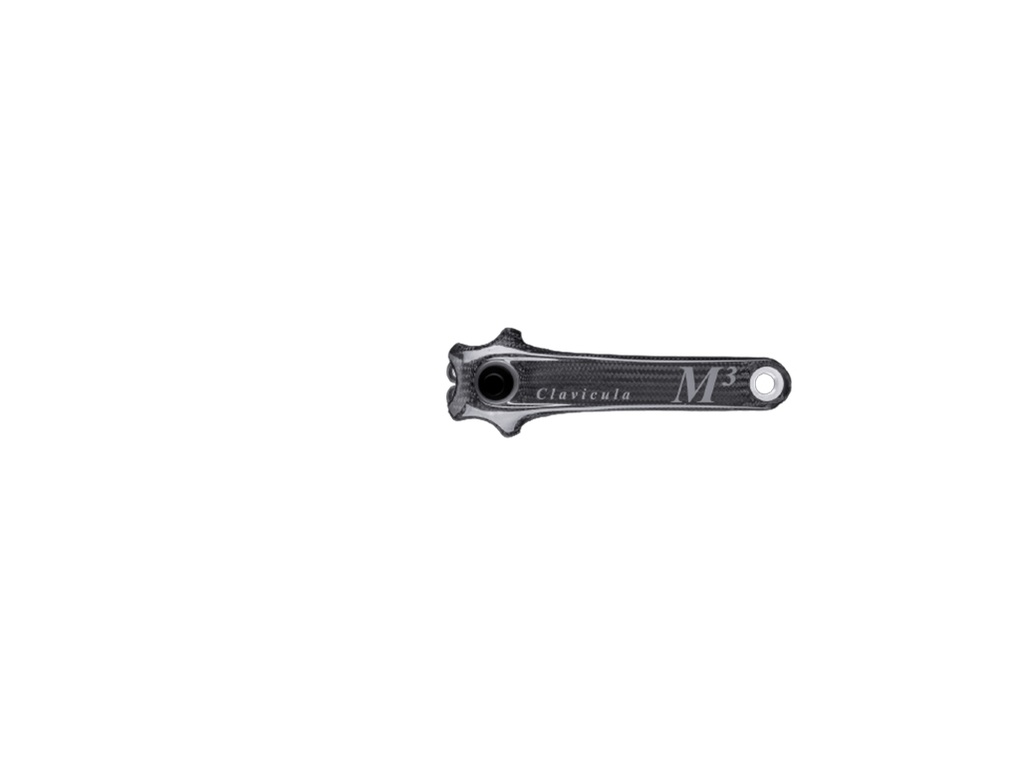

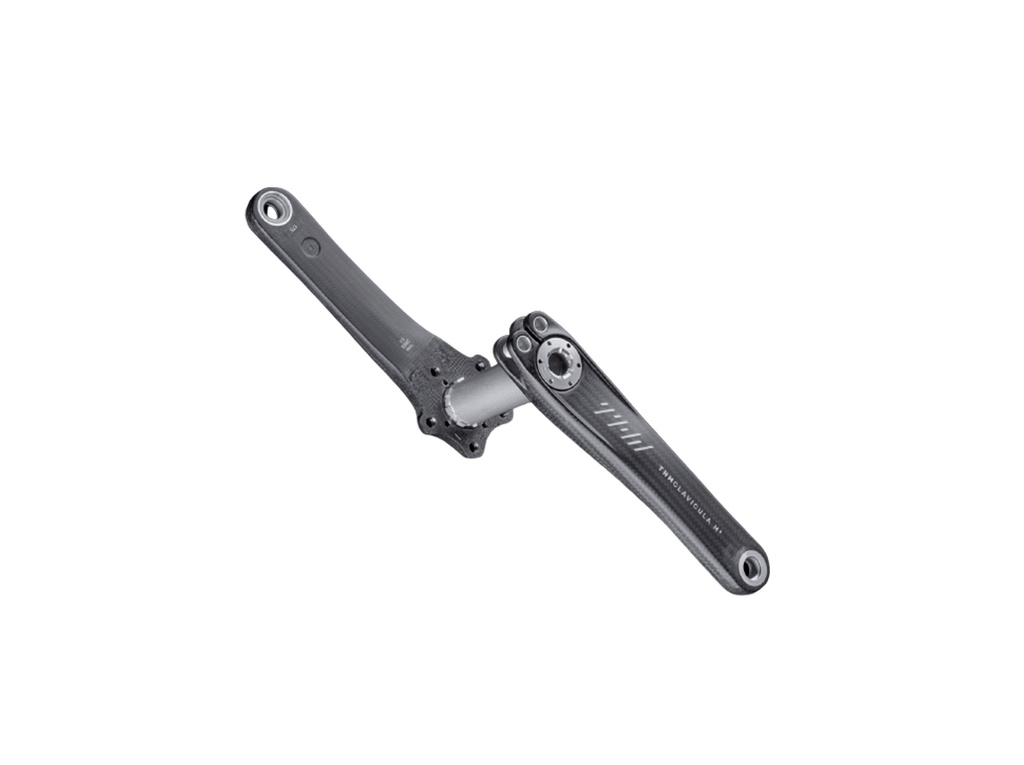

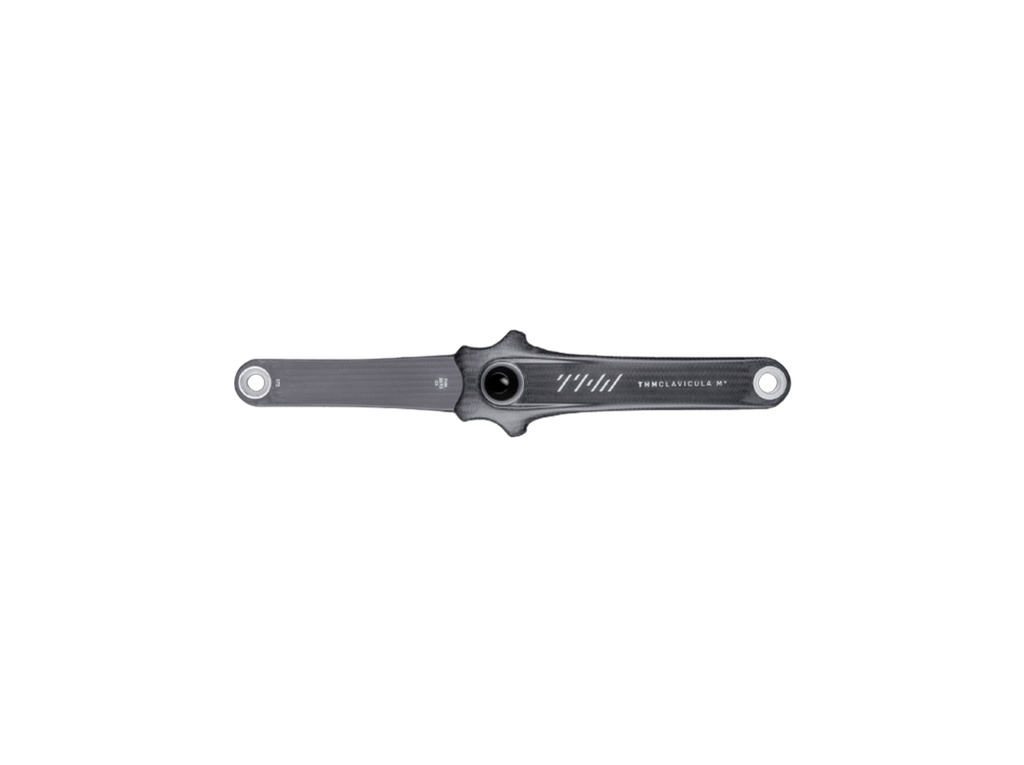

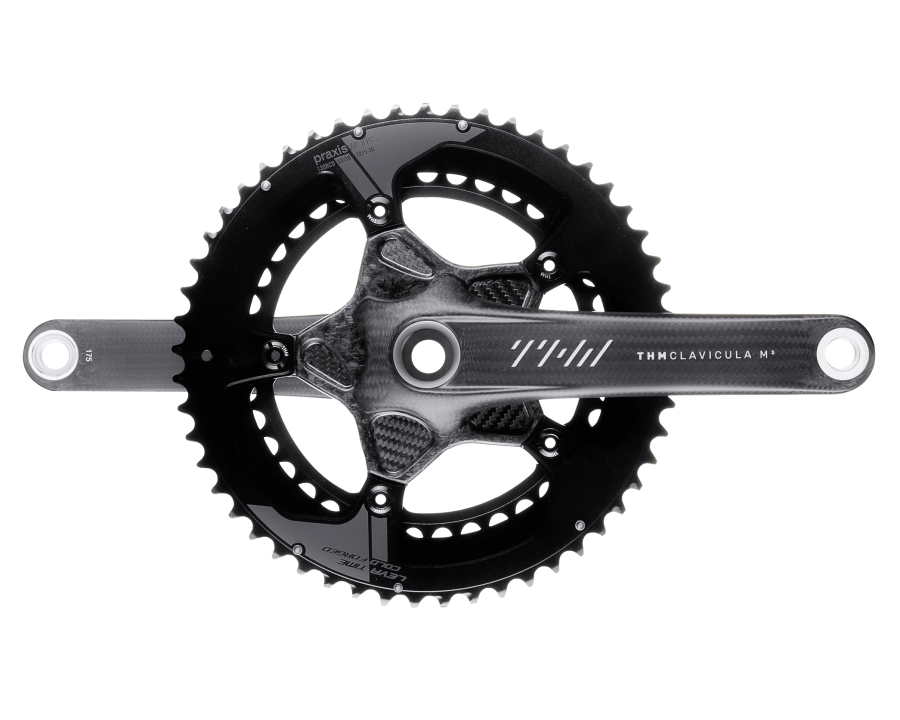

Clavicula M3 Road 170mm Matt Carbones Crank Arm (Without Spider)
THMAvailable Stock
Clavicula M³ Road is our modular, full-carbon crank for road bikes. An interchangeable carbon spider is key to its versatility — by changing the spider, you can fit standard (130 BCD) or compact (110 BCD) ring pairs.
We also offer a spider for the SRM power meter, making Clavicula M³ the world’s lightest SRM crankset at only 740 g, less than many other cranks without power measurement. Weight with 110 BCD spider is 368 g, and stiffness is second only to Clavicula SE.
All common bottom-bracket types are supported including BSA, BB30, PF30, BB386 Evo, Shimano Pressfit (with adaptor), BBright™, and ITA.
Available also the version with the SRM PowerMeter
TECHNICAL INFO
Weight : Approx. 325 g for cranksystem without bearings, spider or chain rings
Spider options: 110 bcd compact spider 43 g,
130 bcd standart spider 50 g,
complete with SRM system 740 g
Mounting : We supply bearings for all common bottom brackets (e.g. BSA, BB30, BB30A, Pressfit30, adaption for Shimano Pressfit, BBright™ and ITA)
Chainrings : THM-Carbones recommend Praxis Works (not included)
Q-Factor : 148 mm
Chainline : 43.5 mm (ITA 44.5 mm)
Inner width of the cranks : 118 mm
(We recommend a minimum clearance of 3 mm to the chainstays)
Available lengths : 170, 172,5 or 175 mm
Max. permissible total weight (rider+bicycle+luggage) : 110 kg (243 lb)
