Warbird Frameset

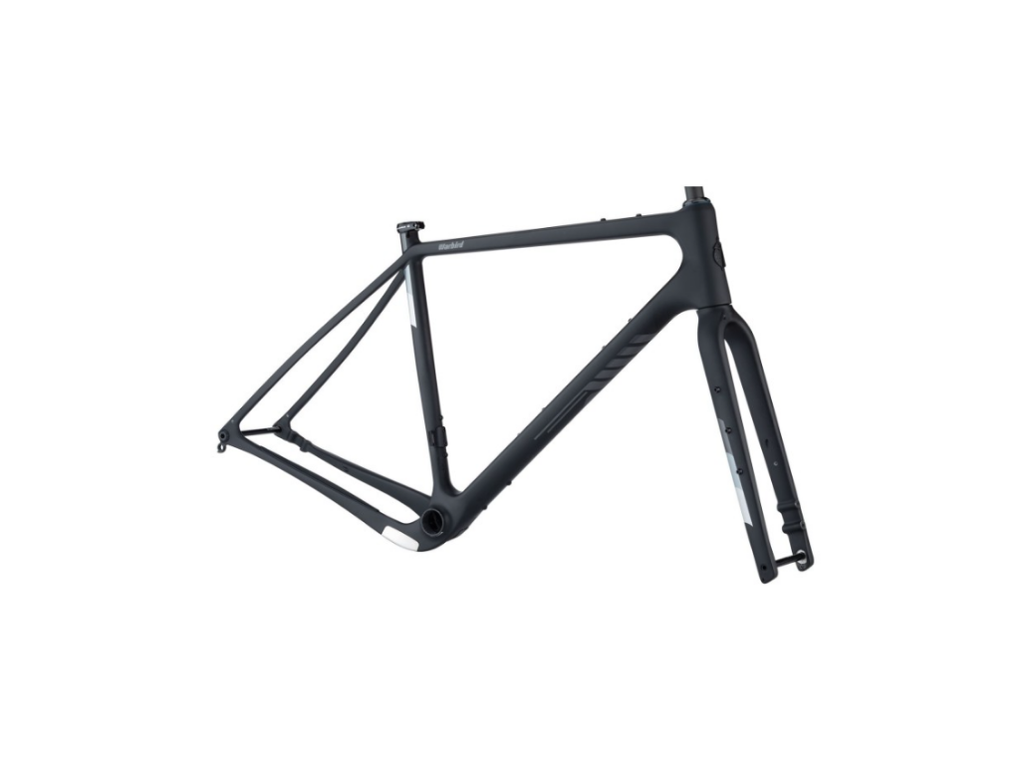

SALSA - Warbird Frameset

Warbird is our gravel race bike, designed to provide smooth performance on the roughest surfaces. It was built off years of experience racing in some of the nation’s premier gravel events like the Almanzo 100, Dirty Kanza 200, and 340-mile Trans Iowa.

FEATURES

Class 5 VRS

Interior Junction Control Molding Technology

Warbird Geometry

Waxwing Deluxe Fork

700c x 40mm Wheel/Tire Spec

Dual Wheel Size Compatible

Integrated Toptube Bag Mount

Generous Water Bottle Capacity

Internal Sleeved Cable Routing

Refined Drivetrain Compatibility

Stealth Dropper Post Compatible

Fender Mounts

Rear Rack Friendly

FRAMESET

Frame : Warbird Carbon

Fork : Waxwing Carbon Deluxe

Color : Black

Rear Shock : N/A

COMPONENTS

Headset : Cane Creek 40

WEIGHT

Frameset Weight : 4 lb 2 oz - 57.5cm

FRAME SPECS

Max Tire OD : 700c: 716mm / 650b: 696mm

Design Wheel/Tire Size : 622 - 32 (700 x 32mm)

Alternate Wheel/Tire Size : 622 – 32-45 (700c x 32–45mm / 1.2–1.8”) / 584 – 47-51 (650b x 47mm–51mm / 1.85–2.0”)

Suspension Fork Length (Travel) : 427mm axle-to-crown (40mm travel)

Rigid Fork Length : 405mm

Fork Offset : 50mm

Headset-Upper : IS41

Headset-Lower : IS52

Seatpost : 27.2mm

Seat Collar : 32.0mm

Bottom Bracket : BB86 PressFit

Crankset : 1x: 44t max; 2x: 52/36t max, 46/30t minimum

Rear Brake (Rotor) : Flat mount 140, 140–160mm, flat mount frame standard 20mm thickness, 27mm bolt length

Rear Spacing : 142mm

Rear Axle : M12 x 167L, TP = 1.5, TL = 20mm

Derailleur Hanger : Hanger 465, QBP# FS2322

Fender Mounts : Yes, required fender hardware included

Rack Mounts : 165mm Lowrider compatible, Salsa Down Under rack recommended

Water Bottle Mounts : Frames up to 54cm: 2 in main triangle, frames 56cm and larger: 3 in main triangle

Downtube Accessory Mount : Yes, one pair

Toptube Mounts : Yes, compatible with Salsa Toptube bag

Stem Clamp : Ø28.6mm

Crown Race : Integrated SHIS 40, 36° angle

Front Brake (Rotor) : Flat mount 160, flat mount rear standard, 35mm thickness, 42mm
