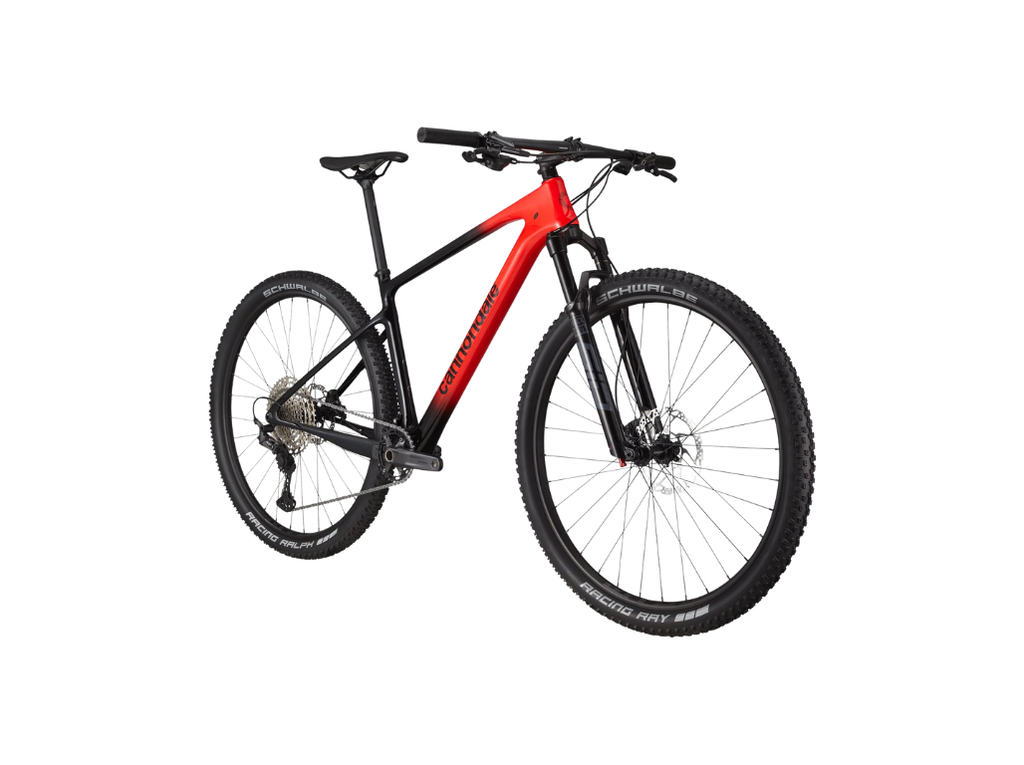

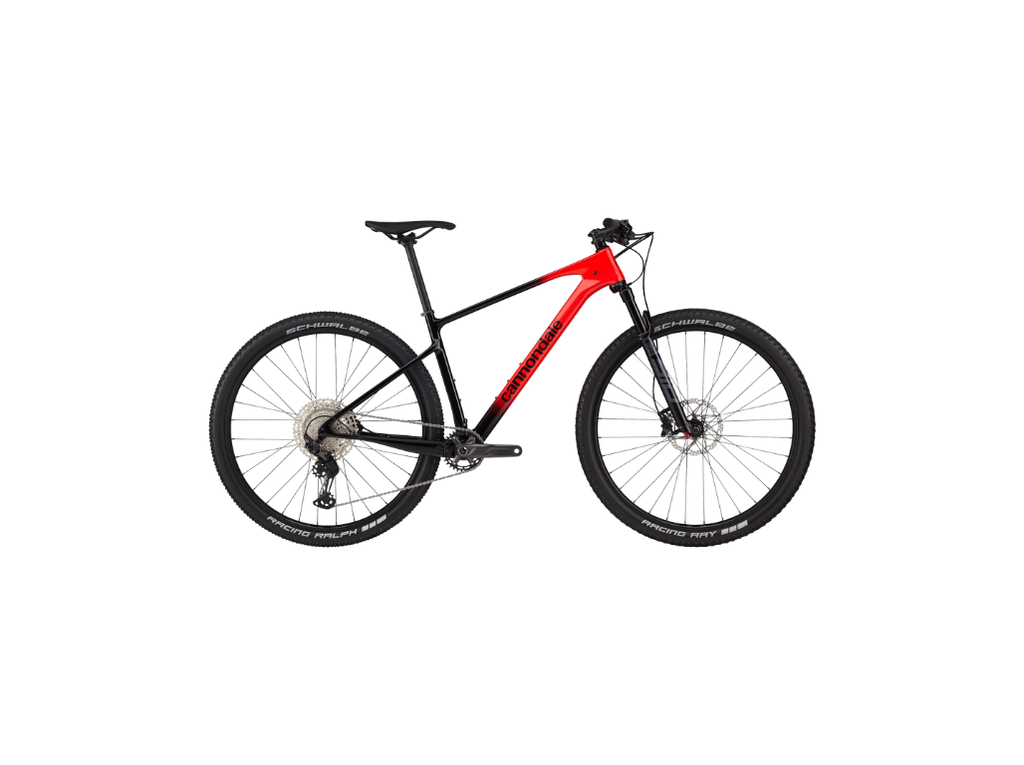

SCALPEL HT CARBON 4

The Purest Form of Racing.

A whole new breed of XC Hardtail, purpose built to hurt ‘em on the ups, drop ‘em on the downs and propel you straight to the top step.

Where it thrives

Between the tape

What it's built for

Speed, Efficiency, and Endurance

Highlights

Progressive, superlight carbon frame / RockShox SID SL 100mm fork

Shimano XT/Deore 12-speed group / Shimano M500 disc brakes

WTB STX i23 tubeless ready rims / Schwalbe Racing Ray-Racing Ralph EVO tires

Specs

Details

Platform
Scalpel HT

Model Name
Scalpel HT Carbon 4

Model Code
C25401U

Frameset

Frame
Scalpel HT Carbon, Proportional Response Design, PF30-83, tapered head tube, 55mm chainline, Speed Release 12mm thru axle w/UDH hanger

Fork
RockShox SID SL , 100mm, Debonair, remote lockout, 15x110mm thru-axle, tapered steerer, 44mm offset

Headset
Integrated, 1-1/8 to 1.5", sealed angular contact bearings

Drivetrain

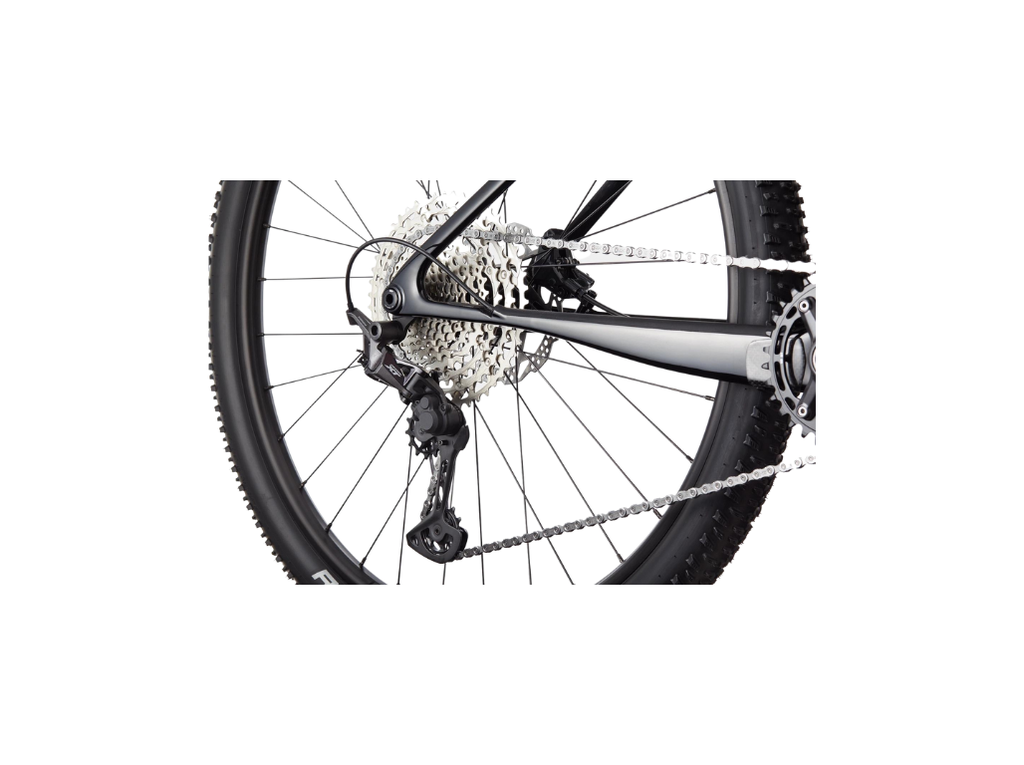

Rear Derailleur
Shimano XT

Shifters
Shimano Deore M6100, 12-speed

Chain
Shimano Deore, 12-speed

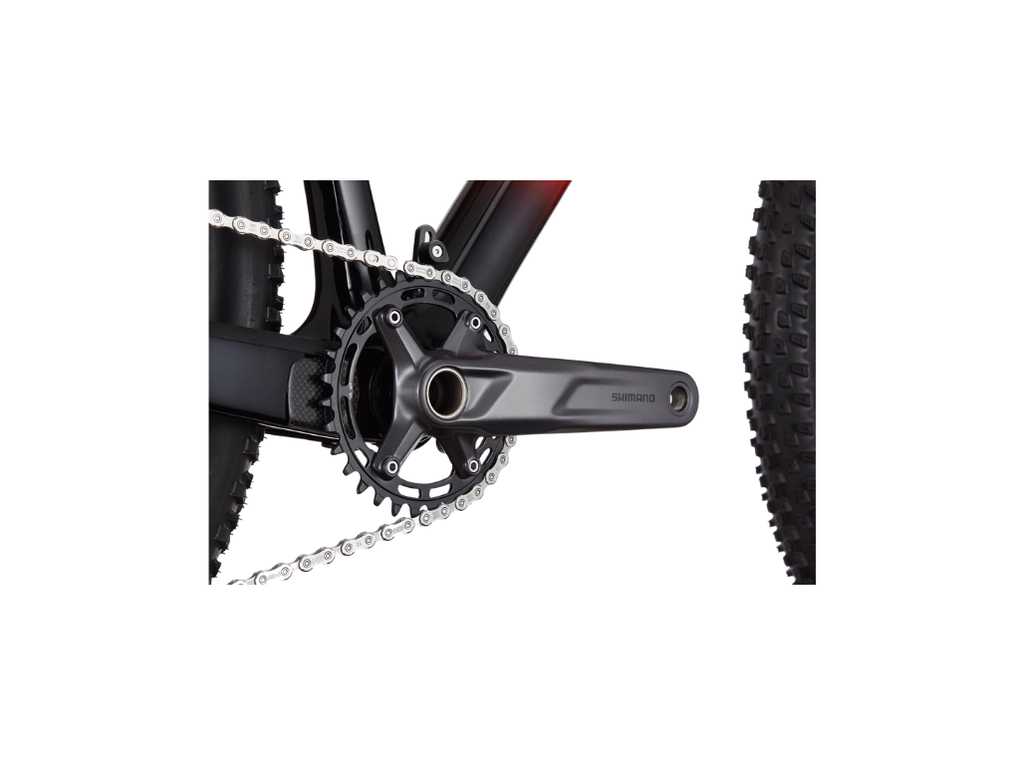

Crank
Shimano M5121, 30T, 55mm chainline

Rear Cogs
Shimano Deore M6100, 10-51, 12-speed

Bottom Bracket
Cannondale Alloy PressFit 30 - 24mm

Brakes

Brakes

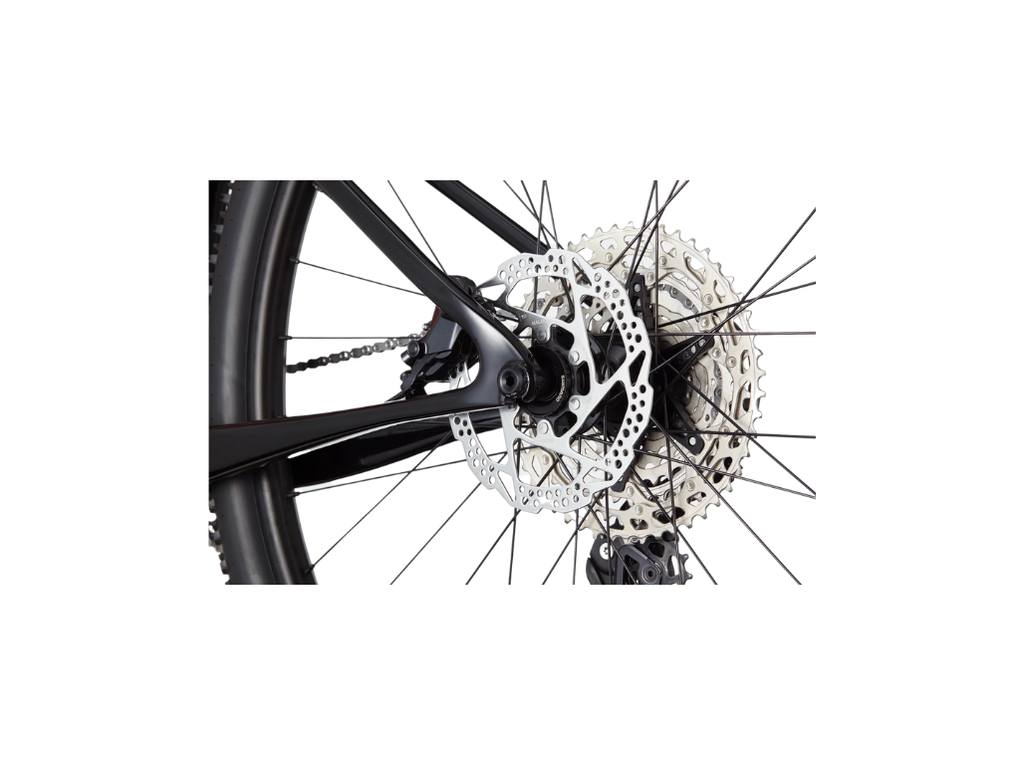

Shimano MT501 hydraulic disc, 160/160mm RT54 rotors

Brake Levers
Shimano MT500 hydraulic disc

Wheels

Rims
WTB STX i23, 32h, tubeless ready

Spokes
DT Swiss Champion 2.0

Tires
(F) Schwalbe Racing Ray EVO, 29 x 2.25", Twinskin, tubeless ready, (R) Schwalbe Racing Ralph EVO, 29 x 2.25", SnakeSkin, Addix compound, tubeless ready

Tire Size
2.25

Wheel Size
29

Hubs
(F) Shimano MT410, 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle

Front Tire
Schwalbe Racing Ray EVO, 29 x 2.25", Twinskin, tubeless ready

Rear Tire
Schwalbe Racing Ray EVO, 29 x 2.25", Twinskin, tubeless ready

Components

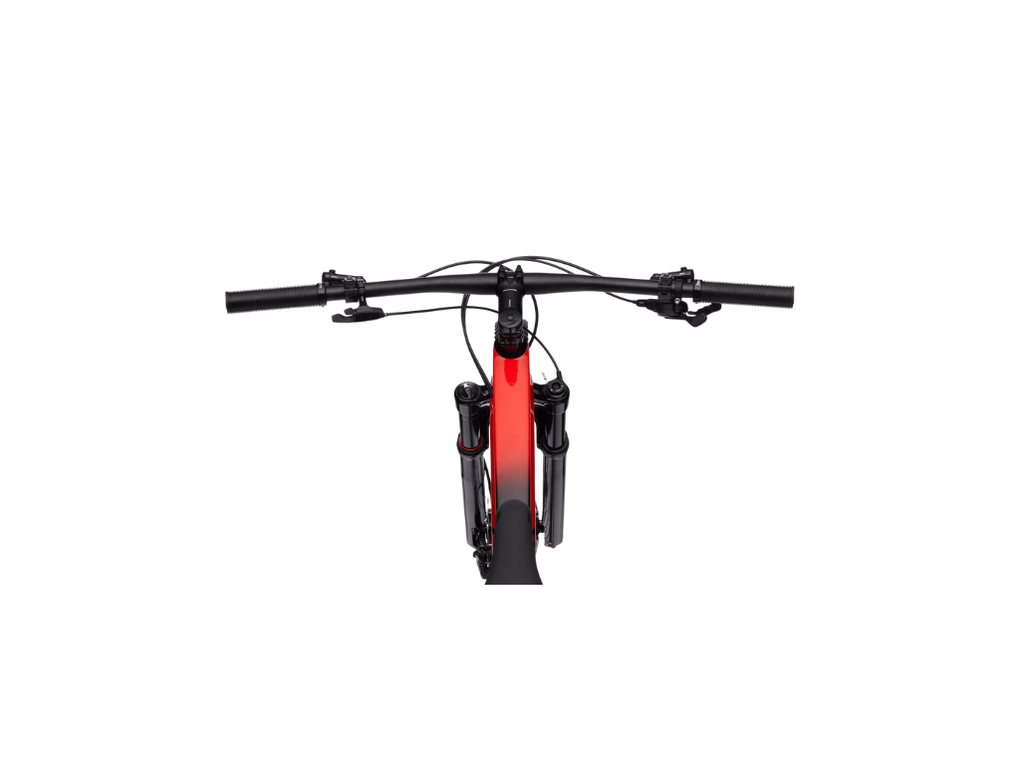

Handlebar
Cannondale 2 Flat, butted 2014 Alloy, 31.8mm, 3° rise, 8° sweep, 760mm

Stem
Cannondale 2, 6061 Alloy, 31.8, 7°

Grips
Cannondale TrailShroom

Saddle
Cannondale Scoop Shallow Sport, steel rails

Seatpost
C3 Alloy, 27.2x400mm
